Model Generation Application

Need a tool to generate process diagrams from events logs?

We have a solution for you!

Free tool

Generate and visualize process activities in BPMN Standards.

Simple usage

Provide event logs and select the format of the diagram to be generated.

Process Analytics

Built by assembling various libraries provided by the Process Analytics project.

How it works?

The Model Generation Application is a shiny R application that takes an event log file in XES format as input.

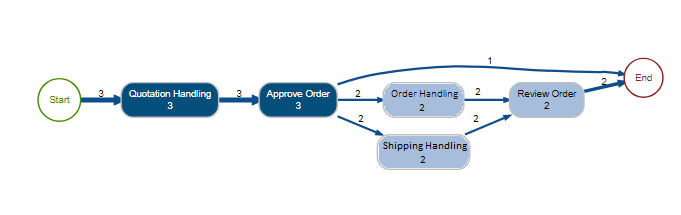

Once imported, it can display the process using 2 representations that can be used for comparison: a basic Process Discovery view and BPMN, with the execution data (frequency).

For both representations, it also lets the user filter out noise that can be generated by the quality of the event log.

With the BPMN view, it can enrich the process semantics by doing gateway and task detection.

More information in this series of articles

Model Generation Application

1 min read

Built with Process Analytics components, our upcoming demonstration tool generates a process from event logs.

Posted on August 2022

Visualizing processes in BPMN standard using the BPMN layout generator

3 min read

In this article, we will use the BPMN layout generator to automatically generate a BPMN diagram from events logs. To further help visualize the process, we will add BPMN objects such as gateways.

Posted on December 2021

Using process discovery on BPM through BPMN: the BPMN layout generator

4 min read

Extract the BPMN semantic of a business process (not based on BPMN process) starting with its event logs using Process Mining tools.

Posted on March 2021

Using Process Discovery on Business Process Management (BPM) through BPMN

3 min read

How Process Discovery can be used on the event logs of a generic application to extract information to re-create an accurate process model in BPMN.

Posted on June 2020
